Motorization

• Dynamic Bafang motor (80Nm) for a maximum approved speed of 25km/h.
• 5 assistance levels and a pedestrian mode on this two-seater electric bike, offering great ease on flat and hilly terrain.
• Color control screen with current speed, battery life, remaining distance, and headlight mode.

Battery (range)

• Removable and key-secured battery, now located behind the seat tube for a re-centered and lowered center of gravity, improving the bike’s stability and handling.
• Up to 120 km with the Standard battery and up to 160 km with the Long Range battery. In optimal real-world conditions (flat road, no wind, normal temperature, 70 kg transported weight, inflated tires). Sleep mode to optimize battery life.

Transmission

• Optimal control thanks to the 7-speed transmission, ideal for adapting to all types of routes, whether in the city or on steeper trails.
• Ergonomic shifter allows for smooth gear changes, for a comfortable and controlled riding experience with every pedal stroke.

Safety

• 180mm 4-piston hydraulic disc brakes guarantee powerful braking in all weather conditions.
• Ultra-grippy Schwalbe Super Moto X tires with reflective stripes ensure safe riding on all types of terrain. Braking distance on dry roads = 4 meters, on wet roads = 4.5 meters (for an adult without a passenger or accessories).

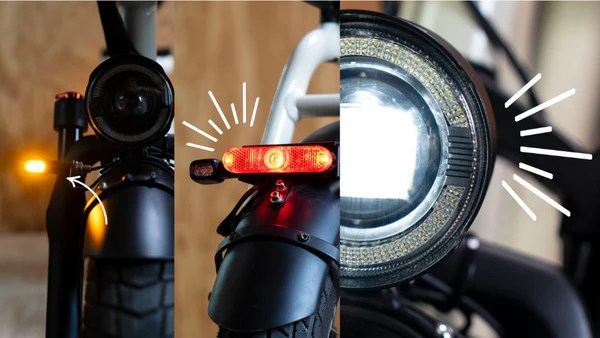

• Electric turn signals to indicate changes of direction.
• 80dB electric horn for signaling and warning.
• Star Union front headlight with a power of 80 lux and a wide beam for better visibility. 2 integrated modes: automatic dipped headlight activation when light levels decrease and full-beam mode activated from the cockpit.
• Rear brake light visible from 220° with increased brightness when braking to signal any slowdown.

Ergonomics
A low-step-through frame with a 43cm height and its signature swan-neck shape for greater everyday practicality. A central footrest and integrated folding side footrests, adjustable to two different heights to suit all body types.

Comfort

• The front shock absorber provides comfort and stability by absorbing road irregularities such as bumps and vibrations.
• The soft, waterproof two-seater seat is ideal for long journeys in wet conditions (available in 2 sizes: low seat as standard and high seat available as an accessory).
• The 6 km/h (3.6 mph) kick-start trigger provides better control and makes starting from a standstill easier, especially on slopes or with a heavy load. Similarly, the center stand enhances the bike’s stability when stopping, especially when loaded.

Carrying Capacity
A maximum payload of 180 kg (excluding the weight of the bike) and a maximum capacity of 80 kg on the luggage rack. It is possible to install a rear rack to carry 1 child or a few bags and parcels, and a front rack for additional storage. The Duo weighs 32 kg (70 lbs) without the battery.

Modularity and Accessories
Compatible with the vast majority of panniers, storage racks, and seats from all brands. Integrated MIK HD interface on the rear rack and MIK on the MIK Front Platform accessory.

Brakes: Tektro HD-E3940 4-piston hydraulics
Brake discs: 180 mm
Chain: KMC HV500
Crankset: Prowheel 48T
Derailleur: Shimano Altus 7
Fork: Mozo suspension, matte black
Frame: Custom 6061 aluminum
Freewheel: Shimano
Gears: 7-speed
Grips: Ergonomic rubber
Fenders: Aluminum
Kickstand: Aluminum center stand
Pedals: Xerama aluminum
Passenger footrests: Aluminum folding, 2 positions (adult and junior)
Rims: 20-inch double-wall aluminum, 50 mm wide
Tires: Schwalbe Supermoto X, 20×4-inch puncture-proof with reflective stripe
Spokes: 2.3 mm diameter aluminum
Saddle: Two-seater, comfortable, waterproof A raised saddle is available as an accessory for taller riders.
Stem: Promax aluminum, 40 mm long

Range: Depending on use, up to 120 km with the Standard battery in S mode and 160 km with the Long Distance battery in S mode
Assistance: 5 assistance modes with heart rate sensor and start-up assist trigger (6 km/h)
Maximum assisted speed: 25 km/h
Charger: 48V 2A, recharges the Standard battery in 7.5 hours and the Long Distance battery in 10 hours
Battery: Lithium-ion, lockable and removable. Standard: 48V 14.4Ah (691Wh) or Long Range: 48V 19.2Ah (921Wh)
Controller: Bafang 48V, 250W
Display: Bafang C080
Motor: Bafang 250W RM-G062 80Nm
Lighting: Powerful Star Union front headlight (80Lux), integrated rear headlight with brake light

Low seat (standard): suitable for riders from 1.60 m to 1.85 m
High seat (accessory): suitable for riders from 1.75 m to 1.95 m
Weight: 32 kg (excluding battery)
Load capacity: 180 kg (excluding vehicle weight)

The Ritmic Duo is an approved electrically assisted bicycle and meets the NF EN 15194 standard.
